Revisiting the Model Context Protocol (MCP): The Emerging Standard for AI Tool Integration
Anthropic's Model Context Protocol (MCP) is rapidly positioning itself as a universal standard – akin to USB-C – for how Large Language Models (LLMs) interact with external tools and data sources.
By defining a clear, open protocol, MCP simplifies integrations, enhances efficiency, and enables complex, multi-turn interactions between AI agents and the digital world.
This post dives deep into why MCP is significant, how it operates internally, its advantages over traditional methods, and practical considerations for implementation, complete with detailed diagrams and code insights.
1. The Need for a Standard: Why MCP Matters Now
The AI landscape is evolving at breakneck speed, particularly in the realm of agentic AI – models that can interact with external systems to perform tasks. However, this progress has often been hampered by a lack of standardization.
1.1 The Integration Explosion Problem
Traditionally, connecting an AI application (like a chatbot or an agent) to various data sources or tools (databases, APIs, file systems) required building bespoke, point-to-point integrations. If you have “M” AI applications and “N” tools/data sources, this quickly leads to an M×N explosion of custom connectors, each needing development, maintenance, and security hardening. This is costly, slow, and brittle.
MCP offers a streamlined solution by introducing a standardized protocol layer.

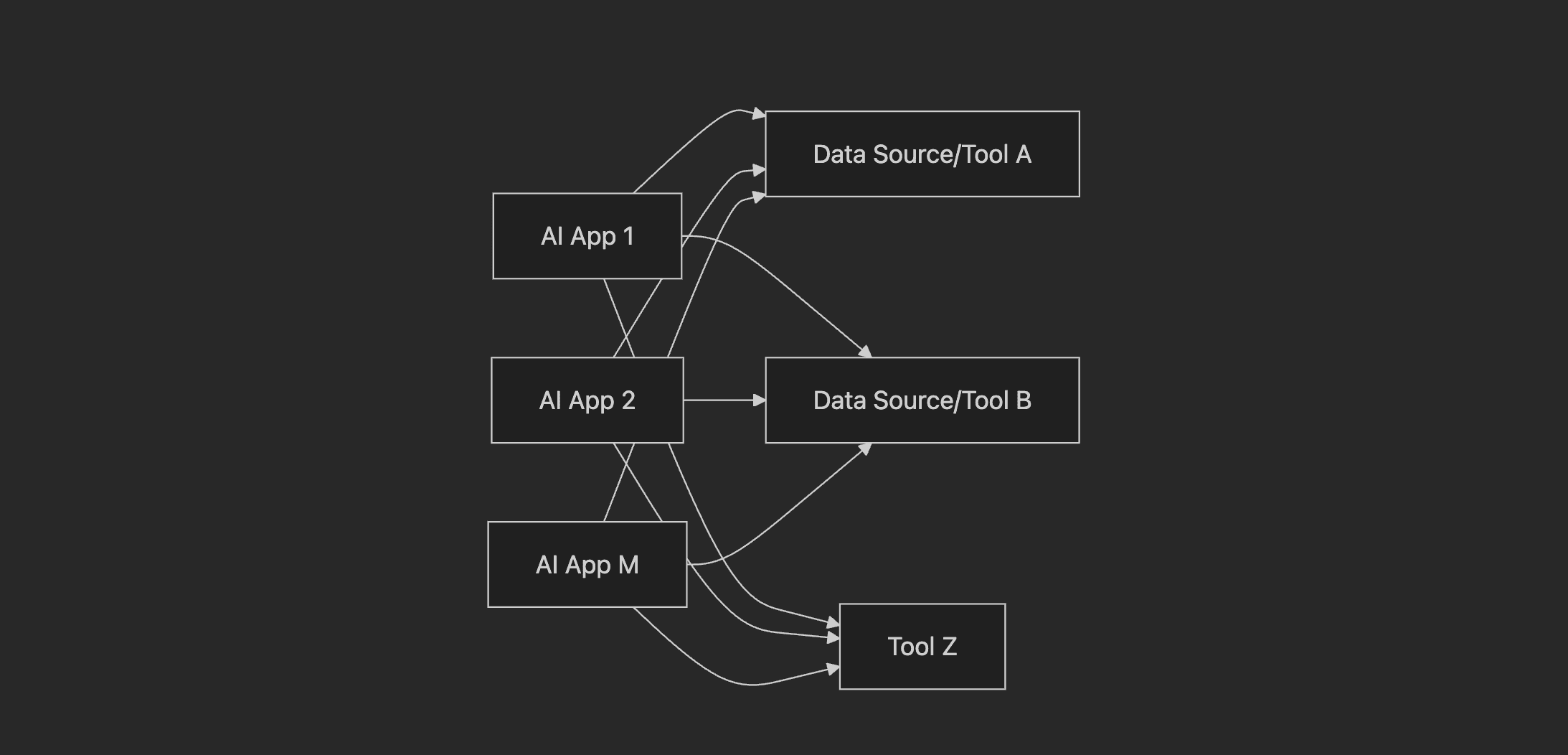

Before MCP: The M×N Integration Maze
This diagram illustrates the complex, point-to-point connections required before MCP. Each AI application needs a custom integration for every data source or tool it interacts with.

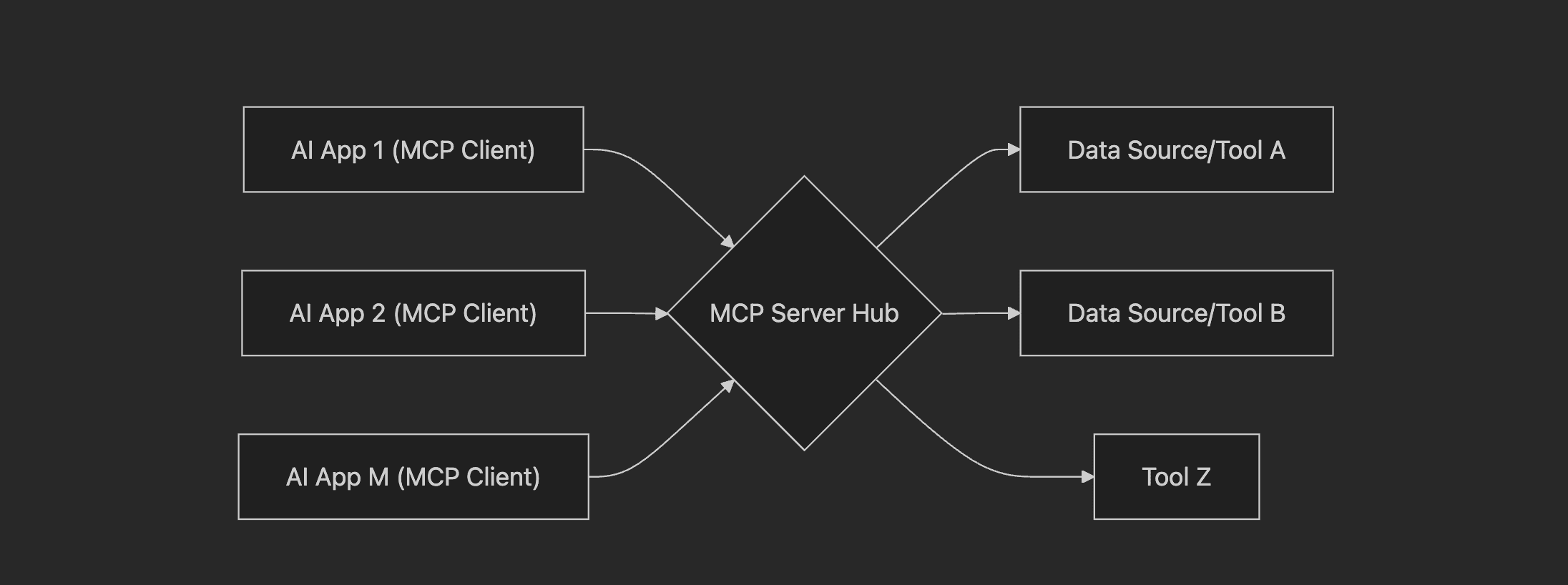

After MCP: The M+N Hub & Spoke Model
This diagram shows how MCP simplifies integrations. AI applications (Clients) communicate with an MCP Server Hub using the standard protocol. The Hub then uses adapters to connect to the various data sources and tools.
Diagram Interpretation: MCP transforms the integration landscape from a complex web of custom point-to-point connections (M×N complexity) to a much simpler hub-and-spoke model (M+N complexity). AI applications act as MCP Clients, and tools/data sources are exposed via MCP Servers (often through adapters).
1.2 Overcoming the Context Window Bottleneck
Modern LLMs have increasingly large context windows, but they are still finite (e.g., 100k-1M/2M tokens). Simply stuffing all potentially relevant information into the prompt for every turn (a common pattern in naive RAG or tool-use implementations) is inefficient and costly. It bloats the prompt, increases latency, and consumes expensive tokens.
MCP addresses this through its context_request and context_response frames. It allows the model (via the client) to specifically request the context it needs. Crucially, MCP supports differential updates. Servers can track context changes and send only the diffs (deltas) since the last update, significantly reducing the amount of data transmitted and needing processing by the LLM, especially in ongoing interactions.
1.3 Escaping Polling Hell and Latency Penalties
Many traditional API interactions rely on polling: the client repeatedly asks the server "Is it done yet?". This introduces significant latency, wastes resources (client and server), and burns API credits. For real-time or near-real-time interactions needed by AI agents, this is suboptimal.
MCP is designed with persistent connections in mind. It can operate over various transports like WebSockets, Server-Sent Events (SSE), or even stdio, allowing for efficient, low-latency, bidirectional communication. The server can proactively push updates or results to the client as soon as they are available. The protocol also includes mechanisms for flow control and back-pressure, preventing systems from being overwhelmed.
2. MCP Architecture: A High-Level View

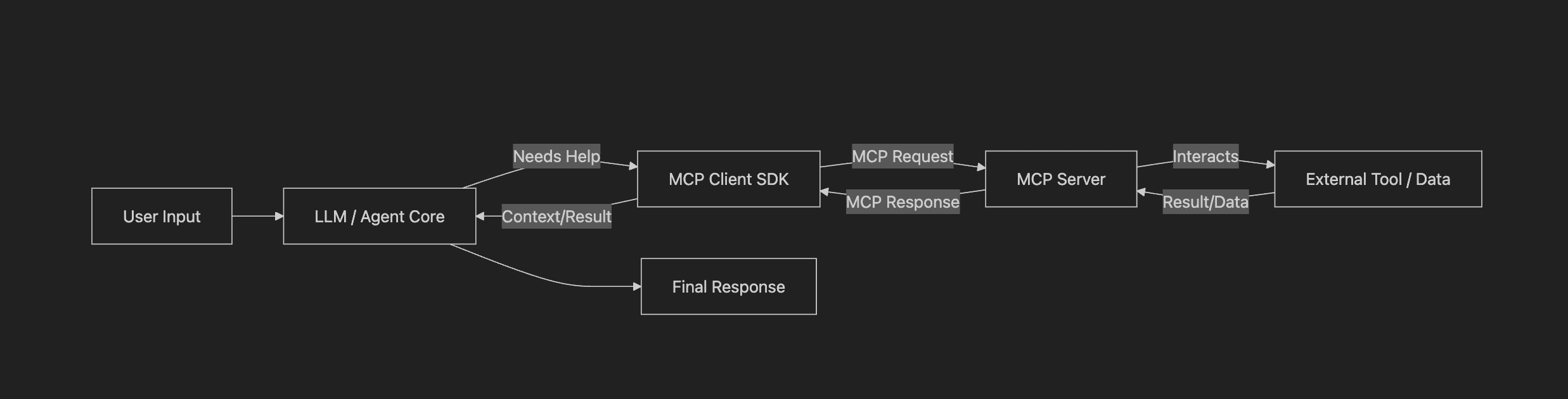

This simplified view shows the core components involved in an MCP interaction:
Diagram Interpretation: User input triggers the LLM Agent. When the agent needs external information or needs to perform an action, it uses the MCP Client SDK. The Client sends a standardized MCP Request to the MCP Server. The Server interacts with the necessary external tool or data source and receives a result. This result is formatted as an MCP Response and sent back to the Client, which provides the information to the Agent. The Agent then uses this information to generate a final response or continue its task (potentially initiating further MCP interactions).

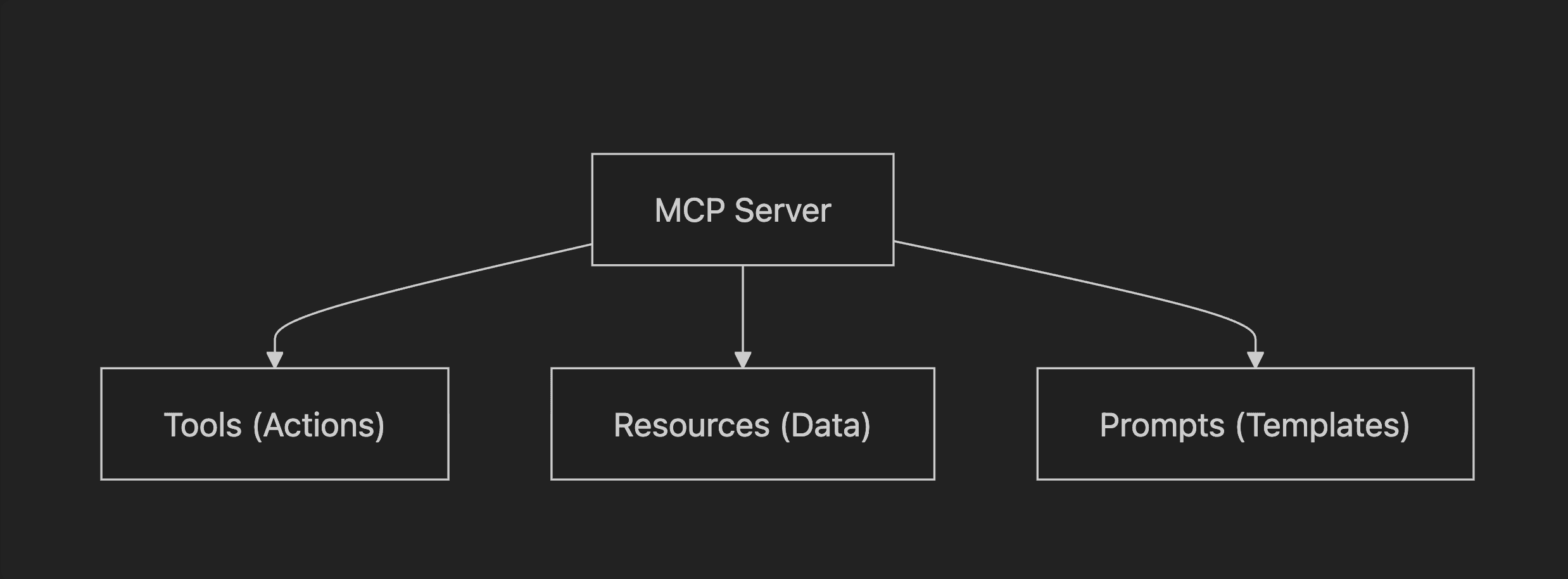

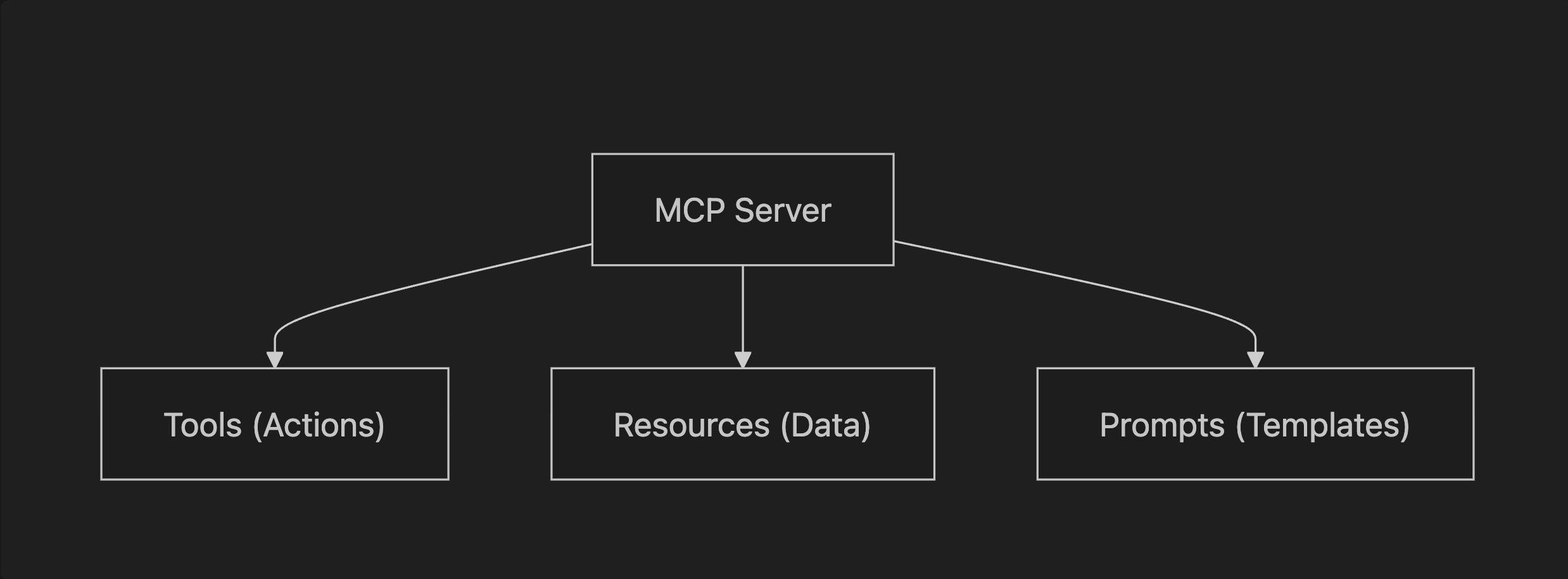

3. Anatomy of an MCP Server: Tools, Resources, and Prompts
MCP servers expose external capabilities, typically categorized into three main types:
- Tools: Allow the AI agent to perform actions (e.g., send an email, update a database). Controlled primarily by the model.
- Resources: Provide the AI agent with read-only information or context (e.g., file contents, database records). Controlled primarily by the application host.
- Prompts: Offer reusable templates or instructions to guide the AI agent. Controlled primarily by the user or developer.
4. The MCP Interaction Lifecycle: A Multi-Turn Example

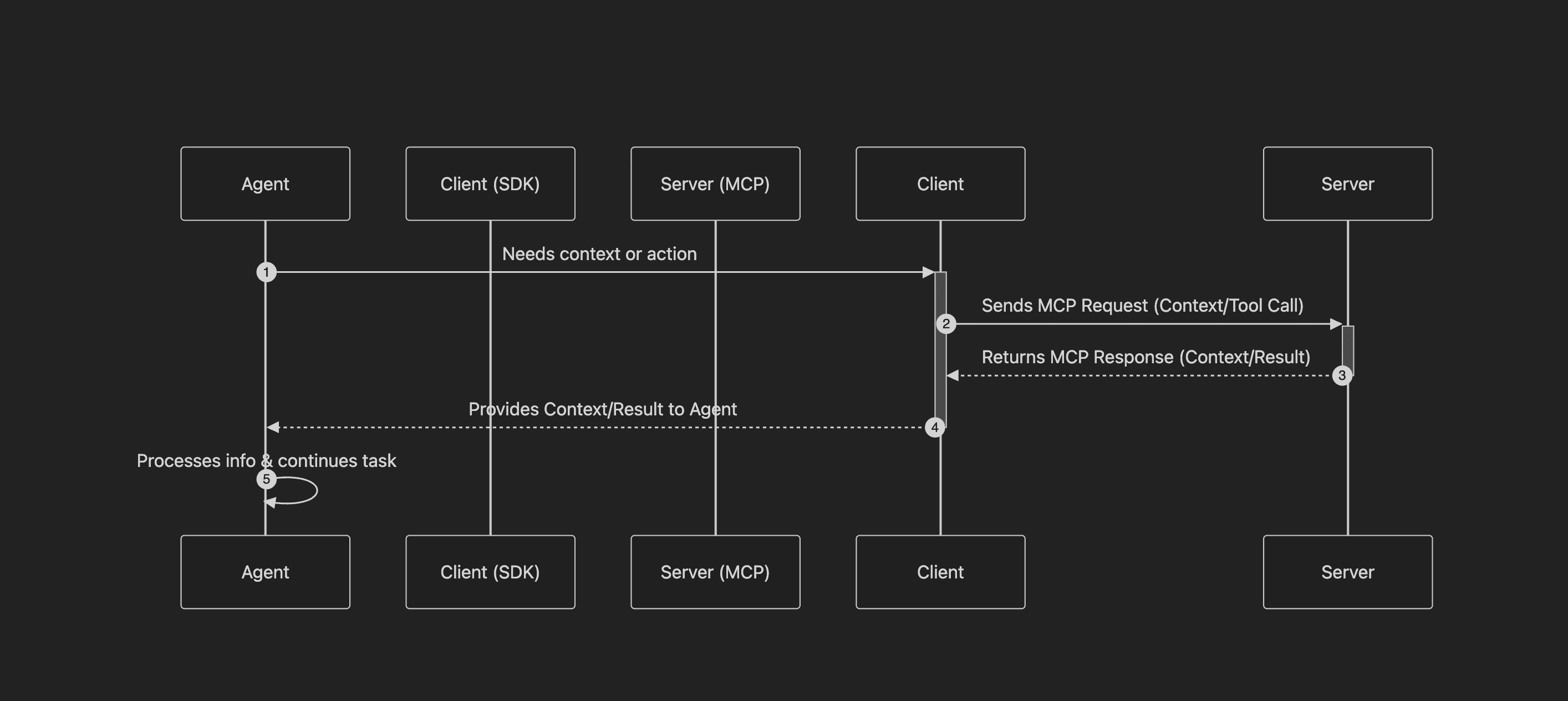

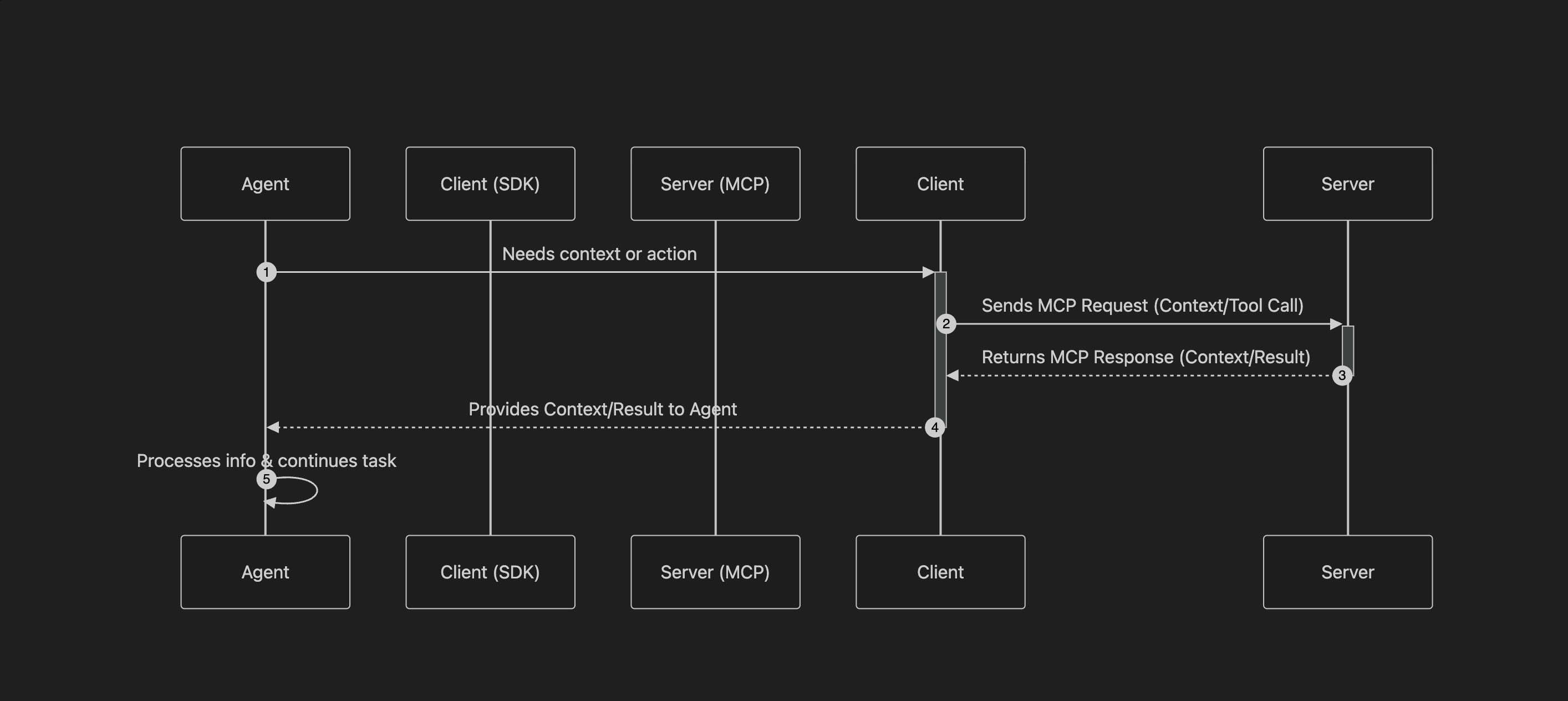

This simplified diagram shows the basic flow when an agent needs external help via MCP:
Diagram Interpretation: The agent determines it needs external help (1). The MCP Client SDK formats and sends the appropriate request to the MCP Server (2). The Server processes the request (performing an action or fetching data) and sends back a response (3). The Client SDK delivers the result or context back to the agent (4), which can then continue its reasoning process (5).
5. Implementing a Minimal MCP Server (Conceptual Example)
Below is a simplified pseudo-code example illustrating the core logic of handling MCP requests via HTTP POST, focusing purely on clarity:
# --- Minimal MCP Server Pseudo-code Example ---
POST /mcp:
data = parse_json(request.body)
if data.method == "tools/call":
result = perform_action(data.params.tool, data.params.args)
return {jsonrpc: "2.0", result: result, id: data.id}
elif data.method == "resources/lookup":
result = fetch_resource(data.params.id)
return {jsonrpc: "2.0", result: result, id: data.id}
else:
return {jsonrpc: "2.0", error: "Method not found", id: data.id}
Key Implementation Points:
- Request Handling: Parses incoming JSON requests.
- Routing: Uses simple conditional logic based on request method.
- Actions & Resources: Calls separate functions (
perform_action,fetch_resource) to handle external interactions. - Response Structure: Follows basic JSON-RPC structure, ensuring consistency.
- Note: This example intentionally omits robust error handling, authentication, and detailed validation for brevity.
6. Performance and Cost Implications
- Token Savings: By requesting only necessary context and using diffs, MCP significantly reduces the number of tokens sent to the LLM compared to stuffing full documents into the prompt. This directly translates to lower API costs (input tokens) and often faster processing.
- Latency Reduction:
- Persistent connections (WebSocket/SSE) eliminate connection setup overhead for each turn.
- Server-pushed updates avoid polling delays.
- Smaller context payloads transmit faster.
- Efficient tool calls can be faster than complex in-prompt reasoning about API schemas.
- Reduced Computational Load: Sending smaller context diffs means the LLM has less text to process for each turn, potentially speeding up inference time.
| Scenario | Context Size (Tokens) | Interaction Latency (p95) | Relative Cost Index | Notes |
|---|---|---|---|---|
| Naive RAG (Full Document) | High (e.g., 15k+) | High (e.g., 2-5s+) | 100% | Sends full context every time |
| MCP context_request (Targeted) | Medium (e.g., 5k-8k) | Moderate (e.g., 1.5-3s) | 40-60% | Requests only relevant chunks |
| MCP context_request (Diff) | Low (e.g., 0.5k-2k) | Moderate (e.g., 1.2-2.5s) | 10-30% | Sends only changes since last request |
| MCP Streaming Tool Call | Low (Payload size) | Low (e.g., < 1.5s) | 10-30% (+ Tool Cost) | Efficient action, avoids prompt injection |
(Note: These are illustrative figures. Actual results depend heavily on the specific LLM, task complexity, network conditions, and tool implementation.)
Savings are most dramatic for multi-turn, interactive tasks where the context evolves incrementally.
7. Real-World Use Cases & Potential
MCP is well-suited for a variety of applications:
- AI Coding Assistants (e.g., Sourcegraph Cody, GitHub Copilot Workspace): Fetching relevant code snippets, running tests, interacting with Git, accessing documentation – all via MCP endpoints.
- Enterprise Knowledge Bots: Connecting LLMs to internal databases (SQL, NoSQL), document stores (Confluence, SharePoint), and communication platforms (Slack, Teams) in a standardized way.
- CI/CD Automation: Agents that can interact with Git repositories, build servers (Jenkins, GitLab CI), deployment platforms (Vercel, AWS), and issue trackers (Jira) via MCP tool calls.
- Personal Productivity Agents (e.g., Claude Desktop concept): Interacting with local file systems, calendars, email clients, and web browsers through local MCP servers.
- Data Analysis Agents: Querying databases, executing Python scripts for analysis (via a tool), and fetching data from APIs, potentially streaming results back.
- Customer Support Bots: Looking up customer information, fetching order statuses, initiating returns, or escalating issues via MCP tool calls into backend systems.
8. MCP vs. Alternatives: A Comparative Look
How does MCP stack up against other common approaches?
| Feature / Approach | Scope | Interaction Pattern | Interoperability | Primary Focus |
|---|---|---|---|---|
| MCP | Open Protocol | Multi-turn, Streaming RPC | Any Model, Any Language, Any Tool | Standardized Agent-Tool Comms |
| OpenAI Function Calling | Proprietary API Feature (GPT models) | Single-turn, Request/Response JSON | Tied to OpenAI API / Azure OpenAI | Model-guided structured output |
| LangChain / LlamaIndex Tools | In-process Library/Framework | Often ReAct Loop (or similar) | Python / TypeScript primarily | Agent Framework / Orchestration |
| Hugging Face Agents | In-process Library (HF ecosystem) | Often ReAct Loop | Python primarily (HF models) | Agent Framework (HF focus) |
| Bespoke API Integrations | Custom per Application/Tool | Various (REST, gRPC, etc.) | Requires custom code per integration | Specific Application Need |
Key Differences:
- Openness: MCP is designed as an open protocol, promoting interoperability across different models, languages, and platforms. OpenAI's function calling is tied to their specific API.
- Streaming & Multi-Turn: MCP explicitly supports persistent connections and streaming, ideal for complex, stateful interactions, unlike the typically single-shot nature of OpenAI function calls.
- Protocol vs. Library: MCP defines the communication protocol, while LangChain/LlamaIndex provide frameworks that might use MCP (or other methods like function calling) underneath. They solve different, though related, problems.
In practice, these approaches are not always mutually exclusive. An agent built with LangChain might use OpenAI's function calling mechanism, which could, in turn, trigger a call to a tool exposed via an MCP server for broader compatibility or access to specific features.
9. Operational Considerations: Pitfalls & Best Practices
Implementing and running MCP systems requires attention to detail:
- Context Management: Send minimal diffs; avoid large payloads.
- Security: Implement strong authentication, authorization, and validation of MCP endpoints/tools.
- Version Control: Explicitly include and check protocol versions.
- Tool Validation: Prevent LLM-invented tools by server-side schema validation.
- State Clarity: Clearly define state responsibility (client/server/shared) with consistent IDs.
- Error Handling: Robust, structured error responses to enable clear agent recovery.
10. Conclusion: Building the Future of Connected AI
The Model Context Protocol (MCP) represents a significant step towards standardizing how AI agents interact with the vast world of digital tools and information. By moving away from bespoke integrations towards an open, efficient, and stream-native protocol, MCP tackles critical challenges like integration complexity, context window limitations, and interaction latency.
It provides a structured way to expose capabilities (Tools, Resources, Prompts) and facilitates robust, multi-turn interactions essential for sophisticated agentic workflows. While still evolving, its design principles offer a compelling foundation for building more capable, efficient, and interoperable AI systems.
Whether you are developing AI applications, building tools to be used by AI, or managing the infrastructure that connects them, understanding and potentially adopting MCP could be key to streamlining development and unlocking new possibilities in the age of agentic AI!
